Fiberglass-reinforced plastic (FRP) anode tubes are the basic components of dust and mist removal equipment such as wet electrostatic precipitators (WESP) and electrostatic tar precipitators. Multiple anode tubes are combined to form an anode module, which serves as the anode part of the wet electrostatic mist eliminator. They are mainly used to remove harmful substances such as dust, acid mist, water droplets, aerosols, tar, and PM2.5 from humid gases, making them ideal dust removal equipment for controlling atmospheric dust pollution. They are widely used in the in - depth purification and up - to - standard emission of wet flue gases in industries such as power, metallurgy, boilers, chemicals, waste incineration, and building materials.

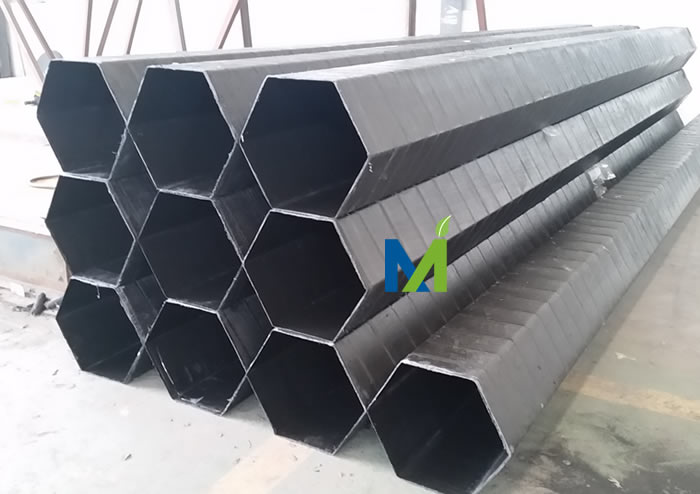

FRP Anode Tubes

Conductive FRP anode tubes (anode tubes for wet electrostatic precipitators). Inside the anode tube, there is a first layer of carbon fiber mat, a second layer of chopped strand mat, a third layer of 0.4 - mm - thick glass fiber cloth, and one layer of mesh cloth. The resin used is flame - retardant vinyl resin, which contains high - carbon - content (＞98%) graphite, flame retardants, etc. Conductive fiberglass - reinforced plastic anode tubes made of this material have advantages such as high strength, good rigidity, excellent electrical conductivity, and flame retardancy.

Production Workshop of Weimei Environmental Protection's FRP Anode Tubes

Characteristics of conductive fiberglass - reinforced plastic anode tubes:

1. The FRP anode tubes are made of vinyl ester resin, featuring strong corrosion resistance and being able to withstand the corrosion of highly corrosive media such as various dilute acids, alkalis, and salts.

2. The FRP anode tubes have excellent electrical conductivity and high efficiency in dust and mist removal.

3. The anode tubes for wet electrostatic precipitators are lightweight, high - strength, with well - defined external dimensions, which saves the cost of the support platform and extends the service life of the equipment.

4. The fiberglass - reinforced plastic anode tubes have a compact structure. The honeycomb - type structure enables the inner and outer surfaces of each tube to serve as precipitation surfaces.

5. The anode tubes for wet electrostatic precipitators have good flame retardancy. The oxygen index of the material can reach over 30, and they have a long service life, generally over 20 years.

6. The FRP anode tubes are widely used in dust and mist removal equipment such as conductive fiberglass - reinforced plastic electrostatic mist eliminators, wet electrostatic mist eliminators, and wet electrostatic precipitators (WESP).

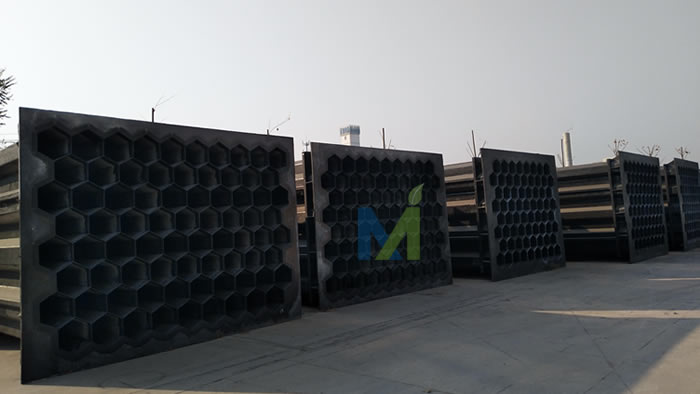

Anode System of Wet Electrostatic Precipitator Awaiting Shipment

Hebei Weimei Environmental Protection is a professional manufacturer of conductive fiberglass - reinforced plastic anode tubes. For many years, it has been engaged in the production and development of wet electrostatic precipitators, and also undertakes the assembly of complete anode tube bundle modules, flange manufacturing, external reinforcement, etc.

Circular FRP Anode Tube Bundles
